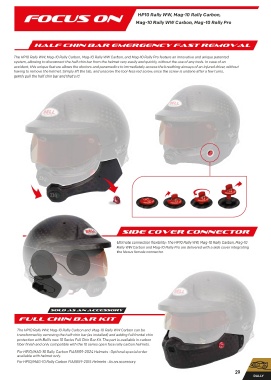

focus on rally

Half Chin Bar
Emergency Fast Removal

EARCUPs SPACER foam The HP10 Rally WW, Mag-10 Rally Carbon, Mag-10 Rally WW Carbon, and Mag-10 Rally Pro feature an innovative and unique patented
system, allowing to disconnect the half chin bar from the helmet very easily and quickly, without the use of any tools. In case of an
accident, this unique feature allows the doctors and paramedics to immediately access the breathing airways of an injured driver, without
having to remove the helmet. Simply lift the tab, and unscrew the tool-less red screw; once the screw is undone after a few turns,
Foam Spacers can be positioned behind the soft earcups gently pull the half chin bar and that's it!
To obtain the right level of pressure and insulation.
The kit with thicknesses (10 mm) is included in the box.

C
M
Y
CM
10 mm
MY
CY
CMY
K
ADJUSTABLE MICROPHONE

The adjustable microphone pieces with different sizes
allow a perfect fit of the microphone right in front of the side cover connector
mouth.
Ultimate connection flexibility: The HP10 Rally WW, Mag-10 Rally Carbon, Mag-10
Two kits with different thicknesses are included in the box. Rally WW Carbon and Mag-10 Rally Pro are delivered with a side cover integrating
15 mm and 33 mm. the Nexus female connector.
For those wanting the connector hanging on a loose cable, the connector side cover
can easily be replaced with a flat cover.
Microphone
Flat right side cover
33 mm is included in the box.
Microphone
15 mm

FULL CHIN BAR KIT

The HP10 Rally WW, Mag-10 Rally Carbon and Mag-10 Rally WW Carbon can be
transformed by removing the half-chin bar (as installed) and adding full frontal chin
protection with Bell’s new 10 Series Full Chin Bar Kit. The part is available in carbon
fiber finish and only compatible with the 10 series open face rally carbon helmets.
Full Chin Bar Kit is sold as an accessory. Not included in the box.
30 31
RALLY RALLY
