CIRCUIT EGOR ORUDZHEV

communication system

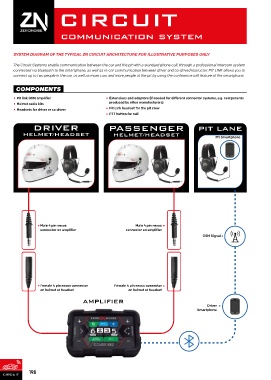

SYSTEM DIAGRAM OF THE TYPICAL ZN CIRCUIT ARCHITECTURE FOR ILLUSTRATIVE PURPOSES ONLY
The Circuit Systems enable communication between the car and the pit with a standard phone call, through a professional intercom system
connected via bluetooth to the smartphone, as well as in-car communication between driver and co-driver/instructor. PIT LINK allows you to
connect up to two people in the car, as well as more cars and more people at the pit by using the conference call feature of the smartphone.

COMPONENTS

Pit link GSM amplifier Extensions and adaptors (if needed for different connector systems, e.g. components
Helmet radio kits produced by other manufacturers)
Headsets for driver or co driver Pit Link headset for the pit crew
PTT button for call

DRIVER PASSENGER PIT LANE
HELMET/HEADSET HELMET/HEADSET
Pit Smartphone

Male 4 pin nexus Male 4 pin nexus
connector on amplifier connector on amplifier
GSM Signal

Female 4 pin nexus connector Female 4 pin nexus connector
on helmet or headset on helmet or headset

AMPLIFIER
Driver
Smartphone
