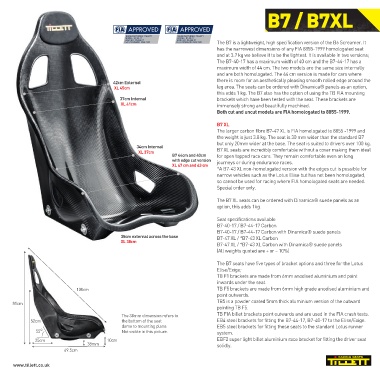

B7 / B7XL

TILLETT TILLETT
B7-44-17 B7-40-17
CS.352.17 CS.356.17
8855-1999 8855-1999 The B7 is a lightweight, high specification version of the B6 Screamer. It
has the narrowest dimensions of any FIA 8855-1999 homologated seat
and at 3.7 kg we believe it to be the lightest. It is available in two versions;
The B7-40-17 has a maximum width of 40 cm and the B7-44-17 has a
maximum width of 44 cm. The two models are the same size internally
and are both homologated. The 44 cm version is made for cars where
42cm External there is room for an aesthetically pleasing smooth rolled edge around the
XL 45cm leg area. The seats can be ordered with Dinamica® panels as an option,
this adds 1 kg. The B7 also has the option of using the TB FIA mounting
37cm Internal brackets which have been tested with the seat. These brackets are
XL 41cm immensely strong and beautifully machined.
Both cut and uncut models are FIA homologated to 8855-1999.

B7 XL
The larger carbon fibre B7-47 XL is FIA homologated to 8855 -1999 and
the weight is just 3.8 kg. The seat is 30 mm wider than the standard B7
but only 20mm wider at the base. The seat is suited to drivers over 100 kg.
34cm Internal
XL 37cm B7 XL seats are incredibly comfortable without a cover making them ideal
B7 44cm and 40cm for open topped race cars. They remain comfortable even on long
with edge cut version journeys or during endurance races.
XL 47 cm and 43 cm
*A B7-43 XL non-homologated version with the edges cut is possible for
narrow vehicles such as the Lotus Elise but has not been homologated,
so cannot be used for racing where FIA homologated seats are needed.
Special order only.
The B7 XL seats can be ordered with Dinamica® suede panels as an
option, this adds 1kg.
Seat specifications available
B7-40-17 / B7-44-17 Carbon
B7-40-17 / B7-44-17 Carbon with Dinamica® suede panels
35cm external across the base B7-47 XL / *B7-43 XL Carbon
XL 38cm
B7-47 XL / *B7-43 XL Carbon with Dinamica® suede panels
(All weights quoted are + or – 10%)
The B7 seats have five types of bracket options and three for the Lotus
Elise/Exige;
TB F1 brackets are made from 6mm anodised aluminium and point
inwards under the seat.
100cm TB F5 brackets are made from 6mm high grade anodised aluminium and
point outwards.
81cm TB5 is a powder coated 5mm thick aluminium version of the outward
pointing TB F5.
The 38mm dimension refers to TB FIA billet brackets point outwards and are used in the FIA crash tests.
52cm the bottom of the seat EB4 steel brackets for fitting the B7-44-17, B7-40-17 to the Elise/Exige.
dome to mounting plane. EB5 steel brackets for fitting these seats to the standard Lotus runner
55 o Not visible in this picture. system.
25cm 10cm EBF2 super light billet aluminium race bracket for fitting the driver seat
38mm solidly.
69.5cm
