Page 147 - catalogo OMP car-parts

CESAL2 CMSST1
EXTINGUISHERS EXTINGUISHERS

WHITE COLLECTION BLACK COLLECTION

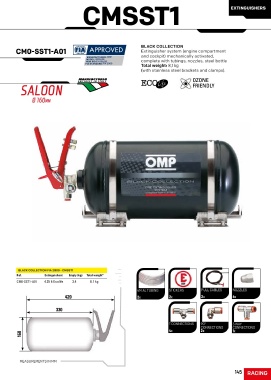

CE0-SAL2-A01 Extinguisher system (engine compartment and cockpit) CM0-SST1-A01 Extinguisher system (engine compartment
OMP electrically activated, with control box, tubings, nozzles, OMP and cockpit) mechanically activated,
ECOLIFE ECOLIFE complete with tubings, nozzles, steel bottle
EX.008.00 aluminium bottle. EX.008.00
FIA 2000 FIA 2000
Total weight: 6,2 kg Total weight: 8,1 kg
(with stainless steel brackets and clamps). (with stainless steel brackets and clamps).
OZONE
OZONE OZONE
OZONE
SALOON FRIENDL SALOON FRIENDL
FRIENDLYY
FRIENDLYY
Ø 160mm Ø 160mm

WHITE COLLECTION FIA 2000 - CESAL2 BLACK COLLECTION FIA 2000 - CMSST1
Ref. Extinguishant Empty (kg) Total weight* Ref. Extinguishant Empty (kg) Total weight*
CE0-SAL2-A01 4.5 lt Ecolife 1.3 6.2 kg CM0-SST1-A01 4.25 lt Ecolife 3.4 8.1 kg

HOSE 4M AL TUBING STICKERS CONTROL BOX 4M AL TUBING STICKERS PULL CABLES NOZZLES
315
1 Ø 8 - 1 Ø 6 2x 2x 1x 420 2x 2x 2x 6x
1x
330

210 PUSH BUTTON NOZZLES WIRING T CONNECTIONS T CONNECTIONS 90° 3 WAY
HARNESSES
CONNECTIONS
CONNECTIONS
160 1x 6x 4x 160 4x 2x 1x

90° 3 WAY
MEASUREMENTS IN MM CONNECTIONS CONNECTIONS MEASUREMENTS IN MM
2x 1x
144 145
