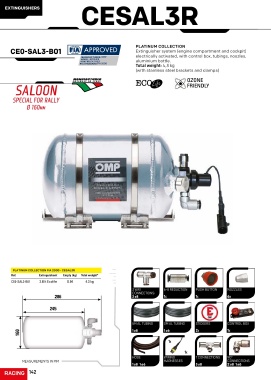

CESAL3R CEFAL2
EXTINGUISHERS EXTINGUISHERS

PLATINUM COLLECTION WHITE COLLECTION
CE0-SAL3-B01 Extinguisher system (engine compartment and cockpit) CE0-FAL2-A01 Extinguisher system (engine compartment and cockpit)
OMP electrically activated, with control box, tubings, noozles, OMP electrically activated, with control box, tubings, nozzles,
ECOLIFE aluminium bottle. ECOLIFE
EX.035.11 EX.009.00 aluminium bottle.
FIA 2000 FIA 2000
Total weight: 4,3 kg Total weight: 4,3 kg
(with stainless steel brackets and clamps) (with stainless steel brackets and clamps).
OZONE
OZONE
OZONE OZONE
SALOON FRIENDL FORMULA FRIENDL
FRIENDLYY
FRIENDLYY
SPECIAL FOR RALLY Ø 160mm
Ø 160mm

PLATINUM COLLECTION FIA 2000 - CESAL3R WHITE COLLECTION FIA 2000 - CEFAL2
Ref. Extinguishant Empty (kg) Total weight* Ref. Extinguishant Empty (kg) Total weight*
CE0-SAL3-B01 2.8 lt Ecolife 0.94 4.3 kg CE0-FAL3-A01 2.8 lt Ecolife 0.94 4.3 kg

3 WAY 6-8 REDUCTION PUSH BUTTON NOZZLES 3 WAY 6-8 REDUCTION PUSH BUTTON NOZZLES
286 CONNECTIONS 1x 1x 6x 286 CONNECTIONS 1x 1x 6x
2 Ø 8
2 Ø 8
245 245

5M AL TUBING 3M AL TUBING STICKERS CONTROL BOX 5M AL TUBING 3M AL TUBING STICKERS CONTROL BOX
160 1 Ø 8 1 Ø 6 2x 1x 160 1 Ø 8 1 Ø 6 2x 1x

1x 1x

1x 1x
HOSE WIRING T CONNECTIONS 90° HOSE WIRING T CONNECTIONS 90°
MEASUREMENTS IN MM HARNESSES CONNECTIONS MEASUREMENTS IN MM HARNESSES CONNECTIONS
1 Ø 8 1 Ø 6 3 Ø 8 2 Ø 8 1 Ø 6 1 Ø 8 1 Ø 6 3 Ø 8 2 Ø 8 1 Ø 6
142 143
