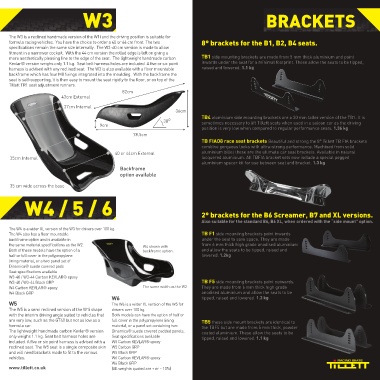

Page 12 - catalogo Tillett

W3 BRACKETS

The W3 is a reclined handmade version of the W1i and the driving position is suitable for
formula racing vehicles. You have the choice to order a 40 or 44 cm front. The two 8° brackets for the B1, B2, B4 seats.
specifications remain the same size internally. The W3-40 cm version is made to allow
fitment in a narrower cockpit. With the 44 cm version the rolled edge is left on giving a
more aesthetically pleasing line to the edge of the seat. The lightweight handmade carbon TB1 side mounting brackets are made from 5 mm thick aluminium and point
Kevlar® version weighs only 1.1 kg. Seat belt harness holes are included. A five or six point inwards under the seat for a minimal footprint. These allow the seats to be tipped,
harness is advised with any reclined seat. The W3 is also available with a floor mountable raised and lowered. 1.1 kg
backframe which has four M8 fixings integrated into the moulding. With the backframe the
seat is self-supporting, it is then easy to mount the seat rigidly to the floor, or on top of the
Tillett TR1 seat adjustment runners.
82cm
43cm External
37cm Internal
36cm
38 o TB4 aluminium side mounting brackets are a 30 mm taller version of the TB1. It is
sometimes necessary to lift Tillett seats when used in a saloon car as the driving
9cm
position is very low when compared to regular performance seats. 1.36 kg
78.5cm
TB FIAO8 race seat brackets Beautiful and strong the 8° Tillett TB FIA brackets
combine gorgeous looks with ultra-strong performance. Machined from solid
40 or 44cm External aluminium billet these are the ultimate car seat brackets. Available in natural
35cm Internal lacquered aluminium. All TBFIA bracket sets now include a special pegged
aluminium spacer kit for use between seat and bracket. 1.3 kg
Backframe
option available
35 cm wide across the base
W4 / 5 / 6

2° brackets for the B6 Screamer, B7 and XL versions.
Also suitable for the standard B6, B6 XL, when ordered with the “side mount” option.
The W4 is a wider XL version of the W3 for drivers over 100 kg.
The W4 also has a floor mountable TB F1 side mounting brackets point inwards
backframe option and is available in under the seat to save space. They are made
the same material specifications as the W2. W4 shown with from 6 mm thick high grade anodised aluminium
Both of these models have the option of a backframe option. and allow the seats to be tipped, raised and
half or full cover in the polypropylene lowered. 1.2kg
lining material, or a two panel set of
Dinamica® suede covered pads
Seat specifications available
W3-40 / W3-44 Carbon KEVLAR® epoxy
W3-40 / W3-44 Black GRP TB F5 side mounting brackets point outwards.
Th
W4 Carbon KEVLAR® epoxy The same width as the W2e same widthast They are made from 6 mm thick high grade
W4 Black GRP anodised aluminium and allow the seats to be
W6 tipped, raised and lowered. 1.2 kg
W5 The W6 is a wider XL version of the W5 for
The W5 is a semi reclined version of the W1i shape drivers over 100 kg.
with the interim driving angle suited to vehicles that Both models can have the option of half or
are very low, such as the GT40 but not as low as a full cover in the polypropylene lining TB5 these side mount brackets are identical to
formula car. material, or a panel set containing two the TBF5 but are made from 5 mm thick, powder
The lightweight handmade carbon Kevlar® version Dinamica® suede covered padded panels. coated aluminium. These allow the seats to be
only weighs 1.1 kg. Seat belt harness holes are Seat specifications available tipped, raised and lowered. 1.1 kg
included. A five or six point harness is advised with a W5 Carbon KEVLAR® epoxy
reclined seat. The W5 seat is a single composite skin W5 Carbon GRP
and will need brackets made to fit to the various W5 Black GRP
vehicles. W6 Carbon KEVLAR® epoxy
W6 Black GRP
www.tillett.co.uk (All weights quoted are + or – 10%)
