P. 133

CEFAL4
 EXTINGUISHERS

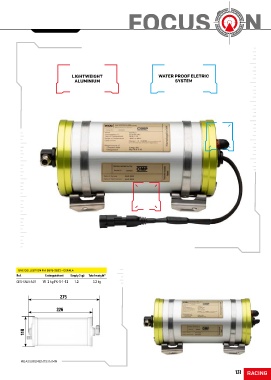

 This fire extinguisher system is homologated FIA 8876-
 CE0-FAL4-A01  2022, the last and innovative FIA standard for plumbed in-
                       OMP  fire suppression system for open cockpit cars. The bottle is
 CEFAL4  made in aluminum with an innovative save spacing solution.
   XXXXXXX
                8876 - 2021  The system covers a wide range of fuels (from petrol till E85
 CLASS  I  II  and  V  (E85))  and  it  is  suitable  for  electric  and
 hybrid cars also.The extinguishing medium when released,   LIGHTWEIGHT   WATER PROOF ELETRIC
 is non-corrosive and not electrically conductive.In contrast   ALUMINIUM  SYSTEM
 FORMULA  to foam or powder, it does not leave any damaging residues,
 so the systems do not have to be cleaned and remain up
 and running after the release of the fluid.The system gets
 pressurized  when  activated,  enabling  the  discharge  of  the
 extinguishant.The electrical system is waterproof and ready
 Ø 110 mm  to be installed and the ECU is IP65 and IP67 certified.Fixing
 brackets, clamps, piping, and connections are included.
 SUITABLE FOR ELECTRIC
 AND HYBRID CARS


 Homologated for use on:
 Petrol - class I
 Petrol + up to 30% ethanol
 or methanol (E30) - class II
 Petrol + up to 85% ethanol
 or methanol (E85) - class V

























           ONE COLLECTION FIA 8876-2022 - CEFAL4

        Ref.                   Extinguishant           Empty (kg)      Total weight*
        CEO-FAL4-AO1         W  2 kg FK-5-1-12      1.2        3.2 kg


                          275

                         226
 WIRING  NOZZLES  PUSH BUTTON  STICKERS  90°
 CONNECTIONS
 4x  1x  2x  4 Ø 8
           110




 Y CONNECTIONS  HOSE  8M AL TUBING Ø8  CONTROL BOX  3 WAY
 CONNECTIONS  MEASUREMENTS IN MM
 1x  10m  1x  2 Ø 8
