P. 137

CESAL4
 EXTINGUISHERS






 CE0-SAL4-A01  ONE COLLECTION
 FROM 2.2 M  UP TO 4.1 M 3  Very compact and ultralight fire extinguisher system,
 3
 electrically activated. FIA 8865-2015 rules complying.
 Aluminium bottle.
                       OMP
 CESAL4L  3 noozles are for the engine bay in order to protect the
   EX.014.17                                                                      TWO DIFFERENT
                FIA 8865-2015  most  critical  and  dangerous  parts  depending  on  the  type   ANODIZED BOTTLE SIDES WITH   EXTINGUISHING MEDIUM
               ULTRALIGHTWEIGHT
 CE0-SAL4-B01  of vehicle, 2 noozles are for the cockpit to ensure the driver   CARBON FIBER PARTS  FK-5-1-12 SIDE (COCKPIT), BLACK   STORED SEPARATELY IN
                                          DIFFERENT COLOR: YELLOW FOR
 front and rear protection.  The system is available in three
 FROM 1.2 M  UP TO 2.2 M 3  versions: “L” version (only for medium-large sized cockpit),    FOR AFFF SIDE (ENGINE BAY)  A SINGLE LIGHTWEIGHT
 3
                                                                                ALUMINIUM BOTTLE
 “S” version (suitable for small size cockpit) and “XS” version
                       OMP  (suitable for ultra compact cockpit).
 CESAL4S
   EX.015.17
                FIA 8865-2015  Total weight: 5,4 kg (bottle only)
 CE0-SAL4-C01
 3
 FROM 0.6 M  UP TO 1.12 M 3
                       OMP
 CESAL4XS
   EX.031.22
                FIA 8865-2015
 Homologated for use on:  SALOON
 Petrol (class I)
 Petrol + up to 30% ethanol or methanol (E30) (class II)
 Petrol + up to 85% ethanol or methanol (E85) (class V)  ULTRALIGHTWEIGHT
 Ø 130mm
 DETAIL OF THE BOTTOM

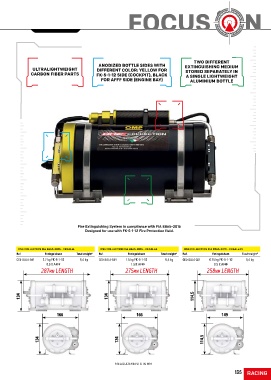

                                  Fire Extinguishing System in compliance with FIA 8865-2015
                                     Designed for use with FK-5-1-12 Fire Protection fluid.



           ONE COLLECTION FIA 8865-2015 - CESAL4L          ONE COLLECTION FIA 8865-2015 - CESAL4S     ONE COLLECTION FIA 8865-2015 - CESAL4XS


        Ref.                      Extinguishant                       Total weight*  Ref.                        Extinguishant                         Total weight*  Ref.                                      Extinguishant                   Total weight*
        CE0-SAL4-A01            2.7 kg FK-5-1-12                     5,4 kg  CE0-SAL4-B01             1.5 kg FK-5-1-12                        5,4 kg  CE0-SAL4-C01             0.75 kg FK-5-1-12                  5,4 kg
                                0,9 lt AFFF                             1.5 lt AFFF                          0.9 lt AFFF
                  287mm LENGTH                       275mm LENGTH                      258mm LENGTH



         134                                  134                                 114,5


                         166                              166                                 149
 10M AL TUBING Ø8  COCKPIT NOZZLE  ENGINE BAY  HOSE  WIRING  Y CONNECTIONS
 BRACKETS  NOZZLES
 2x  33x  12m+4m  2x

                 134                              134                                 114,5


 STICKERS  CONTROL BOX  STRAIGHT  PUSH BUTTON  NOZZLES  T CONNECTIONS  90°
 ADAPTORS  CONNECTIONS
 2x  1x  2x  2x  2x  1x  3x                      MEASUREMENTS IN MM
