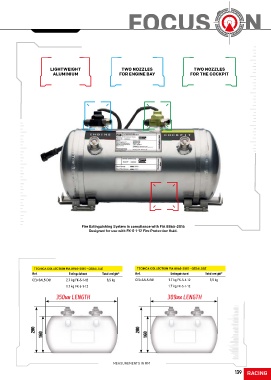

CESAL5 CESAL5 DOUBLE BOTTLE
EXTINGUISHERS EXTINGUISHERS

TECNICA COLLECTION TECNICA COLLECTION
CE0-SAL5-A01 Electrically activated system FIA 8865-2015 homologated, CE0-SAL5-E01 In some categories, two FIA 8865 2015 fire extinguisher
FROM 2.2 M UP TO 4.1 M 3 made in aluminum. The extinguisher can turn off the fire
3
OMP OMP system are required. (i.e. T1, T5 etc)
CESAL5L in few seconds injecting 2 different fire-extinguishing CESAL5L
EX.022.19 EX.022.19 CE0-SAL5-E01 is a double system suitable where 2 system
€ 1.550,00 (C) FIA 8865-2015 medium. AFFF (Black side) to protect the engine bay and € 3.300,00 (C) FIA 8865-2015 are needed or for volume between 4.4 and 8.2 m3.
the clean agent NOVEC1230 (Green side) to protect the
“L” version suitable for cockpit. The system it’s pressurized. 3 black nozzles are Other customized systems for specific needs are available
medium-large sized cockpit. for the engine bay in order to protect the most critical and on request. For any request, including retrofit of single-bottle
systems, contact Racing Force or an authorized dealer.
SALOON dangerous parts depending on the type of vehicle, SALOON
2 green nozzles arefor the cockpit to ensure the
driver protection. Fixing brackets, clamps, tubing and
LIGHTWEIGHT connections are included. Diameter 160mm. DOUBLE BOTTLE SUITABLE FOR T5 Spares and retrofit
Total weight: 6 kg (bottle only)
- CD0-0423 electrical wiring and control unit
Ø 160mm Homologated for use on: Ø 160mm DIESEL VEHICLE - CD0-0367 DPDT activation button
Petrol (class I) - Diesel (class III)
SUITABLE FOR DIESEL Petrol + up to 30% ethanol or methanol (E30) (class II)
CARS Petrol + up to 85% ethanol or methanol (E85) (class V) Four pin connector Four pin connector

Warning!
ECU 1 ECU 2
LIGHTWEIGHT Use DPDT push button only
ALUMINIUM

Activation button
AFFF (Internal)
FOR THE ENGINE + Must be a DPDT button!
PROTECTION To bottle 1 To bottle 2

Activation button
NOVEC1230 (External)
FOR THE COCKPIT Must be a DPDT button!
PROTECTION

Activation button (Extra)
Must be a DPDT button!
CE0-SAL5-B01
FROM 1.35 M UP TO 2.5 M 3 OMP
3
CESAL5S
EX.023.19 ENGINE BAY HOSE
FIA 8865-2015 12M AL TUBING Ø8
€ 1.550,00 (C) NOZZLES 12m+4m TECNICA COLLECTION FIA 8865-2015 - CESAL5L TECINCA COLLECTION FIA 8865-2015 - CESAL5S

3x

“ “S” version suitable for small S” version suitable for small Ref. Extinguishant Total weight* Ref. Extinguishant Total weight*
sized cockpit.ed cockpit. CE0-SAL5-A01 2.7 kg Novec 1230 6 kg CE0-SAL5-B01 1.7 kg Novec 1230 6 kg
siz
TM
TM
1.2 lt AFFF 1.2 lt AFFF
WIRING Y CONNECTIONS STICKERS
350mm LENGTH 309mm LENGTH
2x 2x
CONTROL BOX STRAIGHT PUSH BUTTON
ADAPTORS 200 200
1x 2x 1x
160 160

NOZZLES T CONNECTIONS 90°
CONNECTIONS
2x 1x 3x MEASUREMENTS IN MM
138 139
