SEATS SEATS

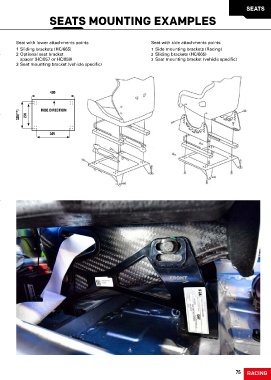

UNIVERSAL BRACKETS SEATS MOUNTING EXAMPLES

SIDE MOUNT Seat with lower attachments points Seat with side attachments points
1 Side mounting brackets (Racing)
1 Sliding brackets (HC/665)
BRACKET 2 Optional seat bracket 2 Sliding brackets (HC/665)
DIMENSIONS Lowest rear mounting hole“A” Lowest front mounting hole “D” spacer (HC/857 or HC/858) 3 Seat mounting bracket (vehicle specific)
The dimensions Length of mounting plate “E” Width of mounting plate “F” Longitudinal range “G” 3 Seat mounting bracket (vehicle specific)
are in mm. Rear range “B” Front range “C” Type of bolt pattern Number of holes
STAFFA
HC0-0731-B01 110 34.5 93 70.5 B 350 45 75 4
HC0-0733-B01 109 17 94 70.5 A 350 52 25 3 400
HC0-0830 77 66 66 77 B 495 48.5 126 6
HC0-0830-B02 112 51 108 73.5 A 422.5 59 112.5 10
HC0-0922 85 81 81 85 B 400 52 75 4
HC0-0923 75,5 100 100 75,5 B 495 50 125 6 RIDE DIRECTION
HC0-0924 85 81 81 85 B 400 52 75 4 320(**) 270
HC0-0925 75,5 100 100 75,5 B 495 50 125 6
STEEL BRACKET STEEL BRACKET 345

HC0-0922 € 97,00 (C) FIA APPENDIX J ART. 253 HC0-0731-B01 € 76,00 (C) FIA APPENDIX J ART. 253
Tall model. Steel. Tall model. Steel.
Length: 400 mm Length: 350 mm
Thickness: 3 mm Thickness: 3 mm
Ultra strong material. Ultra strong material.

STEEL BRACKET STEEL BRACKET

HC0-0733-B01 € 58,00 (C) FIA APPENDIX J ART. 253 HC0-0923 € 106,00 (C) FIA APPENDIX J ART. 253

Low model. Steel. Tall model. Steel.
Length: 350 mm Length: 495 mm
Thickness: 3 mm Thickness: 3 mm
Ultra strong material. Ultra strong material.

ALUMINIUM BRACKET STEEL BRACKET
HC0-0924 € 136,00 (C) FIA APPENDIX J ART. 253 HC0-0925 € 152,00 (C) FIA APPENDIX J ART. 253

Tall model. Aluminium. Tall model. Aluminium.
Length: 400 mm Length: 495 mm
Thickness: 6 mm Thickness: 6 mm
Ultra strong material. Ultra strong material.

STEEL BRACKET

HC0-0830 € 325,00 (C) FIA APPENDIX J ART. 253
Tall model equipped with a damper. Aluminium.
Patented model. Length: 495 mm Thickness: 6 mm
DAMPING ELEMENT
to reduce vertical loads on the driver.
Suitable for off-road.
