CUSTOM

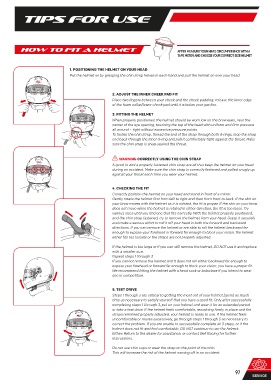

PAINTING TIPS FOR USE

HOW TO FIT A HELMET AFTER MEASURE YOUR HEAD CIRCUMFERENCE WITH A
TAPE METER AND CHOOSE YOUR CORRECT SIZE HELMET
FACTORY CUSTOM PAINTING SERVICE

Bell Racing offers factory custom painting with the guarantee that the painting will not affect the original protective qualities of the helmet. 1. POSITIONING THE HELMET ON YOUR HEAD
Each painted helmet comes with an official certificate, proving its conformity with the FIA safety regulations. Put the helmet on by grasping the chin strap halves in each hand and pull the helmet on over your head.
Our experience over the past years in painting the helmets of F1 and other professional drivers enables us to reproduce almost every possible
design and colours.
2. ADJUST THE INNER CHEEK PAD FIT
Place two fingers between your cheek and the cheek padding, release the inner edge
of the foam collar/lower cheek pad until it is below your jaw line.
PAINTING JOB LEVEL 1 2170031 850,00 € *
PAINTING JOB LEVEL 2 2170032 1.275,00 € * 3. FITTING THE HELMET
PAINTING JOB LEVEL 3 2170033 1.700,00 € * When properly positioned, the helmet should be worn low on the brow eyes, near the
center of the eye opening, touching the top of the head with uniform and firm pressure
PAINTING JOB LEVEL 4 2170034 2.125,00 € *
all around – tight without excessive pressure points.
To fasten the chin strap, thread the end of the strap through both d-rings, loop the strap
GRAPHICS DEVELOPMENT DESIGN ONE VIEW 2170011 132,00 € * end back through the inner d-ring and pull it comfortably tight against the throat. Make
sure the chin strap is snug against the throat.
GRAPHICS DEVELOPMENT DESIGN FULL VIEW 2170011 396,00 € *

GRAPHICS DEVELOPMENT AMENDMENT (PER UNIT/PER AMENDMENT) 2170011 50,00 € *
WARNING CORRECTLY USING THE CHIN STRAP
ADDITIONAL CHARGE CHROME 2170035 360,00 € * A good fit and a properly fastened chin strap are all that keep the helmet on your head
during an accident. Make sure the chin strap is correctly fastened and pulled snugly up
ADDITIONAL CHARGE PAINT SPOILER/PEAK 2170038 160,00 € * against your throat each time you wear your helmet.
ADDITIONAL CHARGE PAINT AIR INTAKE/SIDE COVERS 2170039 71,00 € *
ADDITIONAL CHARGE CHROME SPOILER/PEAK 2170040 71,00 € *
4. CHECKING THE FIT
ADDITIONAL CHARGE CHROME AIR INTAKE/SIDE COVERS 2170041 50,00 € *
Correctly position the helmet on your head and stand in front of a mirror.
ADDITIONAL CHARGE USED HELMET 2170043 99,00 € * Gently rotate the helmet first from left to right and then from front to back. If the skin on
your brow moves with the helmet as it is rotated, the fit is proper. If the skin on your brow
does not move when the helmet is rotated in either direction, the fit is too loose. Try
various sizes until you find one that fits correctly. With the helmet properly positioned,
and the chin strap fastened, try to remove the helmet from your head. Grasp it securely
and make a serious effort to roll it off your head in both the forward and backward
directions. If you can remove the helmet or are able to roll the helmet backward far
OTHER SERVICES enough to expose your forehead or forward far enough to block your vision, the helmet
either fits too loosely or the straps are not properly adjusted.

INTERIOR FULL KIT REBUILD SERVICE CHARGE (Complimentary to SKU 218xxxx) 2170006 95,00 € * If the helmet is too large or if you can still remove the helmet, DO NOT use it and replace
with a smaller size.
INTERIOR KIT ASSEMBLY CHARGE (After painted shell) 2170050 215,00 € *
Repeat steps 1 through 3
REPLACEMENT SERVICE BELL HELMET (Hans post anchor-drinking tube-chinstrap-radio kit) 2170084 30,00 € * If you cannot remove the helmet and it does not roll either backward far enough to
expose your forehead or forward far enough to block your vision, you have a proper fit.
We recommend fitting the helmet with a head sock or balaclava if you intend to wear
one in competition.
* Reduced discount
5. TEST DRIVE
SIZING CHART Steps 1 through 3 are critical to getting the most out of your helmet.Spend as much
time as necessary to satisfy yourself that you have a good fit. Only after successfully
completing steps 1 through 3, put on your helmet and wear it for an extended period
Metric 51 52 53 54 55 56 57 58 59 60 61 61+ 63 64 65 66 67 68 or take a test drive. If the helmet feels comfortable, remaining firmly in place and the
Size
straps remained properly adjusted, your helmet is ready to use. If the helmet feels
uncomfortable or moves excessively, go through steps 1 through 3 as necessary to
Generic 3XS XXS XSM SML MED LRG XLG 2XLG 3XLG 4XLG correct the problem. If you are unable to successfully complete all 3 steps, or if the
Size helmet does not fit and feel comfortable, DO NOT continue to use the helmet.
Either: Return to the dealer for assistance, or contact Bell Racing for further
Hat 1 1 5 3 7 7 1 1 1 3 1 5 3 7 / - 8 1 1 3 1 instructions.
7
8
8
4
4
8
8
Size 6 / 4 6 / 2 - 6 / 8 6 / - 6 / 8 7 / - 7 / 4 7 / - 7 /8 7 /2 7 / - 7 / 4 8 8 / - 8 / 4 8 / - 8 /2
Do not use chin cups or wear the strap on the point of the chin.
This will increase the risk of the helmet coming off in an accident.
